Sensing Your DSLR Sensor's Condition

Note: Although I consider myself photographically competent, I need to acknowledge the information and insights I received from two trusted photo industry friends as I researched these two articles on Camera Sensors, Tom Houston of Pro Photo Supply and Dave Sleeth of Advance Camera -- both organizations are Portland, Oregon camera stores. Each gentleman helped me develop this information in a manner that would be most easily understood by the community of beginning DSLR photographers who read my educational blogs.

Technologically, my Canon D30 has been eclipsed several times by newer models with greater resolution and up-to-the-minute innovations. But because it was my first professional DSLR and the comfort factor I experience with the camera, I continue to grab it whenever my work doesn't require extremely high resolution files -- like the images used on my Internet website and blogs.

I have taken this camera everywhere -- Spain, France, Alaska, New York and throughout the southwest U.S. to name a few. It has been exposed to virtually every climate and weather condition imaginable. Although I keep the camera and lenses clean and protected, I began to notice spots on my pictures. These spots were especially obvious when I was using a small aperture opening and the background was a smooth single color. Clear blue skies made these imperfections especially visible and distracting.

Entire Image

Enlarged section of original picture

Figure 1 - Eiffel Tower (Las Vegas version). Original on top. Enlarged version beneath.

The problem started with just one spot. I worked around the problem by "dust busting" my images in Photoshop using the "cloning" tool. Over time, these imperfections began appearing everywhere in my pictures and always in exactly the same places. Figure 1 shows how extensive the problem became. (If you can't see the spots on the pictures of the Eiffel Tower on the top image, the second image is an enlarged section of the same picture with the spots circled in red.)

I knew all along that the problem was dirt falling on (and sticking to) my camera's sensor. But, to me, cleaning my camera's super-sensitive sensor was akin to taking out my own appendix. I'm no surgeon, and this wasn't an operation I was looking forward to attempting.

This first article on camera sensors will provide you with the information for determining the "dirt status" of your sensor and deciding if your sensor needs cleaning. My next post will detail the options available for cleaning a dirty sensor. Nothing shown in this article has the potential of harming your camera or costing you anything, but the following procedure should be carried out occasionally to determine the state of your sensor.

Visually checking the "dirt status" of your camera's sensor is a simple process, but it does take a little time. The camera's imaging sensor is well hidden in a DSLR. It is located behind the mirror and then behind the curtains that make up the camera's shutter. Consequently, taking off the lens and looking inside the camera body does not allow you to see or inspect the sensor.

The easiest and surest way of checking your sensor is by taking a special test picture with your camera. Here are the steps:

Figure 2 -- Set up for taking sensor "test" picture
  • find a large piece of smooth, single-color cardboard or mounting board (11"x14" or larger will do) with a clean surface
  • make sure you have a data storage card in your camera
  • set up the camera to take a picture of this board. (Figure 2 above shows my set up using a tripod to hold the camera
  • place the camera in Manual Focus mode and set the camera's focus ring to infinity (when looking through the camera's viewfinder, the now "out of focus" piece of board should fill the entire image area)
  • set the camera to Aperture Priority mode and use an f/stop setting of f/16 (high degree of depth of field)
  • allow the camera to make the automatic meter reading and take the picture
  • while you're at it, shoot a couple extra -- just in case.
Now you have one image file (and two back up files) of nothing but out-of-focus "blank". Download these files to your computer. Here's the picture result of the test shot using my D30 DSLR:

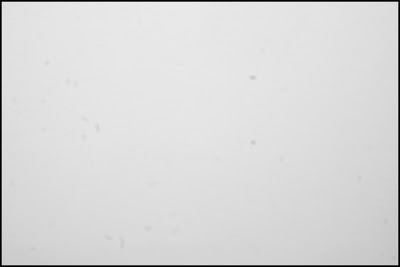

Figure 3 -- Original sensor test picture

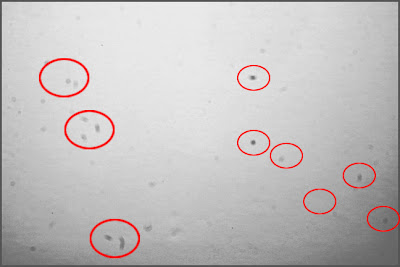

Figure 4 -- Same as Figure 3, with dust spots circled in red.

Figure 5 -- Sensor test picture after applying Photoshop "Equalize" function

Figure 3 is the "straight out of the camera" image as seen in Photoshop. At the picture size in this blog, it might be difficult to locate the dust spots on your monitor. So, in Figure 4 I circled the dust spots in red. Figure 5 uses a command within Photoshop called "Equalize". (The Equalize command redistributes the brightness values of the pixels in an image so that they more evenly represent the entire range of brightness levels.) Although it's not important here to understand how Equalize works, the results when applied to this test are dramatic. The dust that sits on my camera's sensor is readily apparent in Figure 5, and more prevalent than I was able to identify in the red circles of Figure 4.

(If you don't have imaging editing software, like Photoshop, with an Equalize function, no problem. Try increasing the contrast levels in your software. This will help. But as Figure 4 demonstrates, you'll be able to see if there are large spots of dust on your sensor even without special image enhancement.)

Conclusion: Hub has a very dirty camera sensor.

The next post "How to clean a DSLR sensor" will tackle the problems and dangers of cleaning a dirty sensor as well as the steps you can take to minimize dust reaching your DSLR's imaging sensor.

In the meantime, get ready for the next article by performing the simple test above to see the current condition of your sensor.
